Gas Kettle

Products

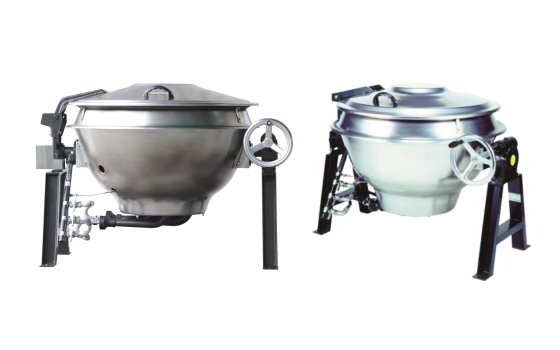

GHS

Standard kettle

The GHS is a multi-purpose cooking kettle for commercial use that utilizes traditional Japanese craftsmanship. Hattori developed this model for high-volume cooking.

It excels in durability, versatility, and cost performance, and is used in school lunchrooms, hospital kitchens, food processing plants, and restaurants throughout Japan.

【GHS】

*Flick left or right to view.

Model	Capacity (L)	Gas consumption (kg/h)		Size(D×W×H)(mm)
Model	Capacity (L)	(kW)	(kg/H)	Size(D×W×H)(mm)
GHS-23	36	23.23	1.67	1200×326×1530
GHS-26	55	23.3	1.67	1316×906×1645
GHS-28	80	37.2	2.67	1348×946×1700
GHS-30	110	37.2	2.67	1426×1020×1765
GHS-32	140	50.0	3.58	1448×1036×1830
GHS-35	190	50.0	3.58	1566×1158×2515

GHS Gas Kettle Brochure Download

GHSFE

Frying +Multi-purpose Kettle

The GHSFE is suitable for cooking delicate foods that require very precise temperature control.

The automatic temperature control function makes it ideal for deep frying, soups, stews, and other dishes that need to be cooked at the right temperature.

【GHSFE】

*Flick left or right to view.

Model	Capacity (L)	Gas consumption (LPG, kg/h)		Size(D×W×H)(mm)
Model	Capacity (L)	(kW)	(kg/H)	Size(D×W×H)(mm)
GHSFE-23	36	18.0	1.29	1168×826×1525
GHSFE-26	55	18.0	1.29	1272×906×1635
GHSFE-28	80	30.0	2.15	1295×946×1700
GHSFE-30	110	30.0	2.18	1369×1020×1765
GHSFE-32	140	43.0	3.08	1384×1036×1818
GHSFE-35	190	43.0	3.08	1495×1158×2515

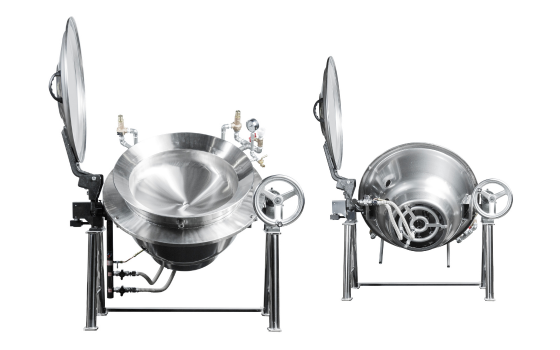

JK

Indirect heating kettle

The JK cooks food through indirect heating of grease in the kettle jacket.

It is ideal for cooking temperature-sensitive foods such as jams, creams, and bechamel sauces.

None

【JK】

*Flick left or right to view.

Model	Capacity (L)	Steam consumption (kg/h)		Size(D×W×H)(mm)
Model	Capacity (L)	(kW)	(kg/H)	Size(D×W×H)(mm)
JK-40	40	18.0	1.29	1249×826×1530
JK-60	60	18.0	1.29	1346×920×1625
JK-100	100	23.0	1.65	1378×950×1700

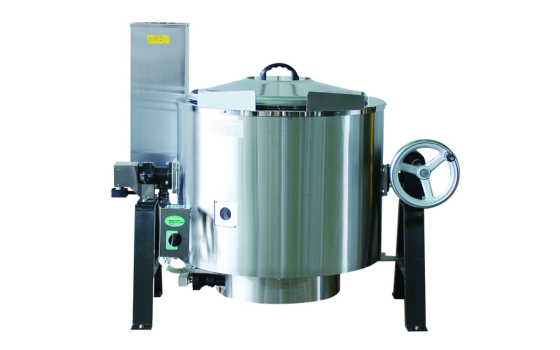

GZT

Kettle specialized for soup (NEW !)

GZT is a kettle specialized for cooking large quantities of soup.

It has been well by numerous hotel kitchens and ramen stores throughout Japan.

【GZT】

*Flick left or right to view.

Model	Capacity (L)	Gas consumption (kg/h)		Size(D×W×H)(mm)
Model	Capacity (L)	(kW)	(kg/H)	Size(D×W×H)(mm)
GZT50L-W2	50	18.0	1.29	1183×833×1136
GZT75L-W2	75	18.0	1.29	1183×833×1084
GZT100L-W2	100	23.0	1.65	1281×882×1106
